Neel Electric’s compact pad‑mounted transformer for residential subdivisions and commercial plazas features oil‑immersed self‑cooling, plug‑in termination, and a corrosion‑resistant stainless steel cabinet – delivering quiet, maintenance‑free power distribution in space‑limited urban environments.

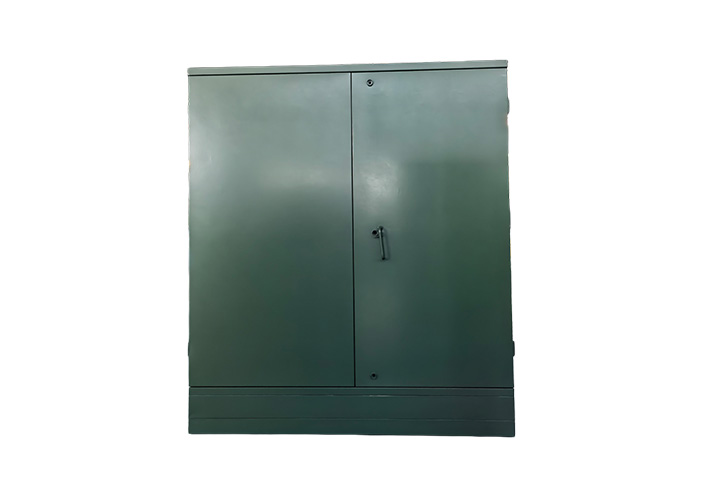

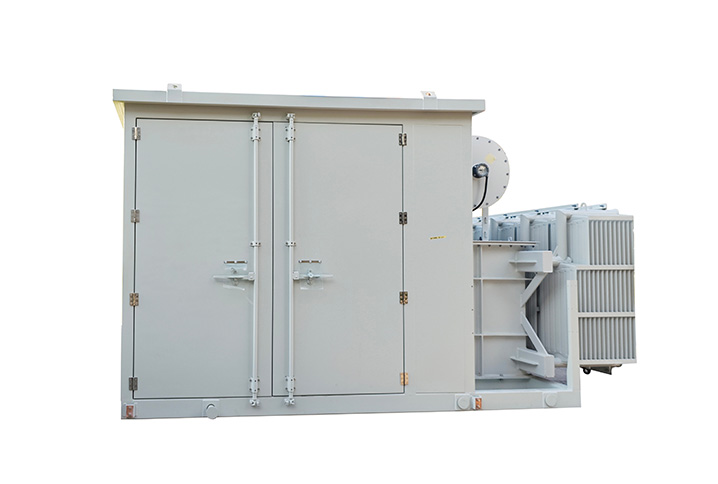

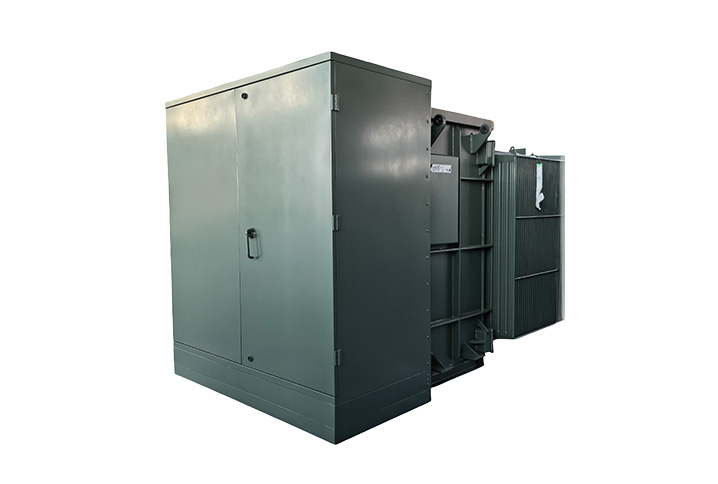

Our Pad-Mounted Transformer features a compact, fully enclosed design within a corrosion-resistant stainless steel cabinet, ideal for ground-level installation in residential subdivisions, commercial plazas, and urban public spaces. The plug-in bushing and separable connector system simplifies installation and facilitates easy cable termination.
Its oil-immersed self-cooling structure ensures excellent heat dissipation, delivering reliable performance and requiring minimal maintenance over its service life. With a small footprint and aesthetic appearance, this transformer blends seamlessly into landscape environments.
Space-saving compact design – Minimizes ground footprint, suitable for limited-space urban installations.
Oil-immersed self-cooling – Natural convection ensures stable operation even under sustained loads.
Low noise & high reliability – Quiet operation with long-term stability and reduced maintenance costs.
|
Parameters |
Value |
|
Rated high-voltage(kV) |
10~35 |
|
Rated low-voltage(kV) |
0.4~1.14 |
|
Maximum operating voltage(kV) |
40.5 |
|
Rated frequency(Hz) |
50/60 |
|
Rated capacity(kVA) |
~3300 |
|
Cooling method |
ONAN |
|
Ambient temperature(℃) |
-25~55 |
|
High-voltage switch |
Oil-immersed load-break switch |
|
Protection degree |
IP54 (compact substation) / IP68 (transformer) |
|
Altitude(m) |
~3000 |
