Dc switch cabinet-Neel Electric Equipment (Zhengzhou)Co., Ltd.

Product Introduction

The MB metal‑enclosed DC switchgear comprises incoming panels, feeder panels, and negative busbar panels. This product is primarily used in urban rail transit systems to deliver electrical power to the traction supply network, while providing comprehensive control and protection functions.

Technical Parameters

Parameter	Value
Rated operating voltage (V)	900/1800/3600
Rated operating current (A)	2600/4000/6000
Rated power-frequency withstand voltage (50 Hz / 1 min) (kV)	5.5/8.3/14
Rated insulation voltage (V)	1800/3000/4800
Degree of protection	IP20/IP30/IP41

Send Message

Related Products

Containerized PV Substation

The containerized PV substation is a fully integrated, skid mounted electrical system that combines a solar step up transformer, HV/LV switchgear, smart monitoring, and auxiliary components within a standard ISO container enclosure.

110kV-500kV Full-series Power Transformers

What sets Neel’s 110kV–500kV transformers apart is how we combine precision engineering, a full suite of international certifications, and agile design capabilities. That combination lets us deliver site-specific power solutions that perform reliably across the world’s most diverse grid networks.

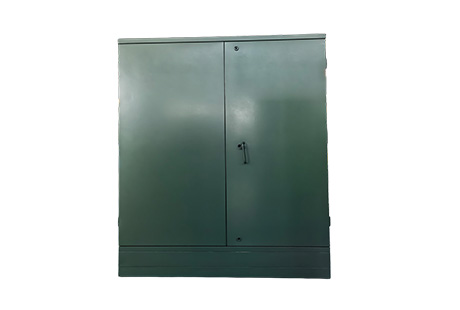

Pad-mounted Transformer

Our Pad-Mounted Transformer features a compact, fully enclosed design within a corrosion-resistant stainless steel cabinet, ideal for ground-level installation in residential subdivisions, commercial plazas, and urban public spaces. The plug-in bushing and separable connector system simplifies installation and facilitates easy cable termination.

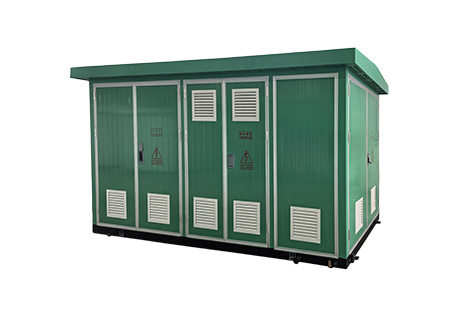

Prefabricated Substation
